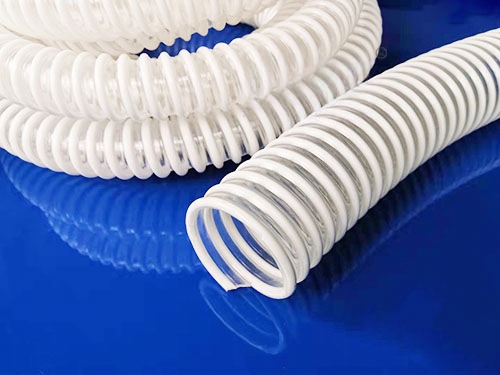

Acid and alkali resistant TPV duct characteristics:
• Lightweight, flexible in bending, with high temperature stability and excellent chemical resistance, and outstanding ozone resistance. This type of hose can isolate noise generated during air transportation.
• Grounding can discharge static electricity
• Good compression performance
• Good tensile resistance
• Meets ROHS certification requirements
Application scope:
Air transportation hoses for mechanical automation industries, can also be used as ventilation pipes, etc. As suction pipes and transportation pipes, especially suitable for the following materials:
| I.D | O.D | Recommended operating limits | Weight | Lenth | |
| mm | mm | Overpressure barbar | Vacuumbar | kg/m | |
| 38 | 48 | 2.62 | 0.885 | 0.55 | 20 |
| 40 | 50 | 2.595 | 0.88 | 0.57 | 20 |
| 50 | 60 | 2.085 | 0.865 | 0.71 | 20 |
| 60 | 70 | 1.75 | 0.755 | 0.83 | 20 |
| 70 | 81 | 1.515 | 0.625 | 1.01 | 20 |
| 75 | 86 | 1.41 | 0.575 | 1.07 | 20 |
| 80 | 91 | 1.325 | 0.52 | 1.14 | 20 |
| 100 | 111 | 1.065 | 0.365 | 1.41 | 20 |
| 125 | 136 | 0.86 | 0.275 | 1.74 | 20 |
| 150 | 161 | 0.715 | 0.185 | 2.29 | 20 |
| 200 | 213 | 0.535 | 0.125 | 2.82 | 10 |
